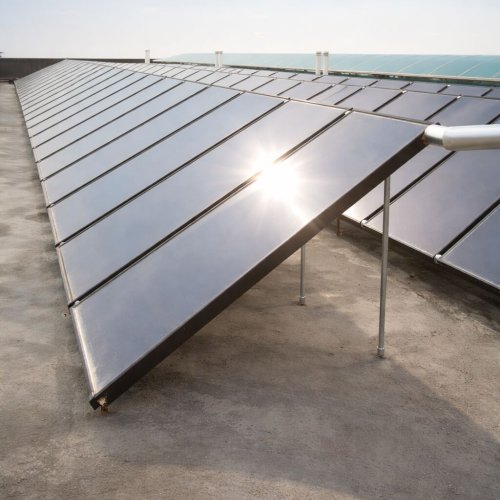

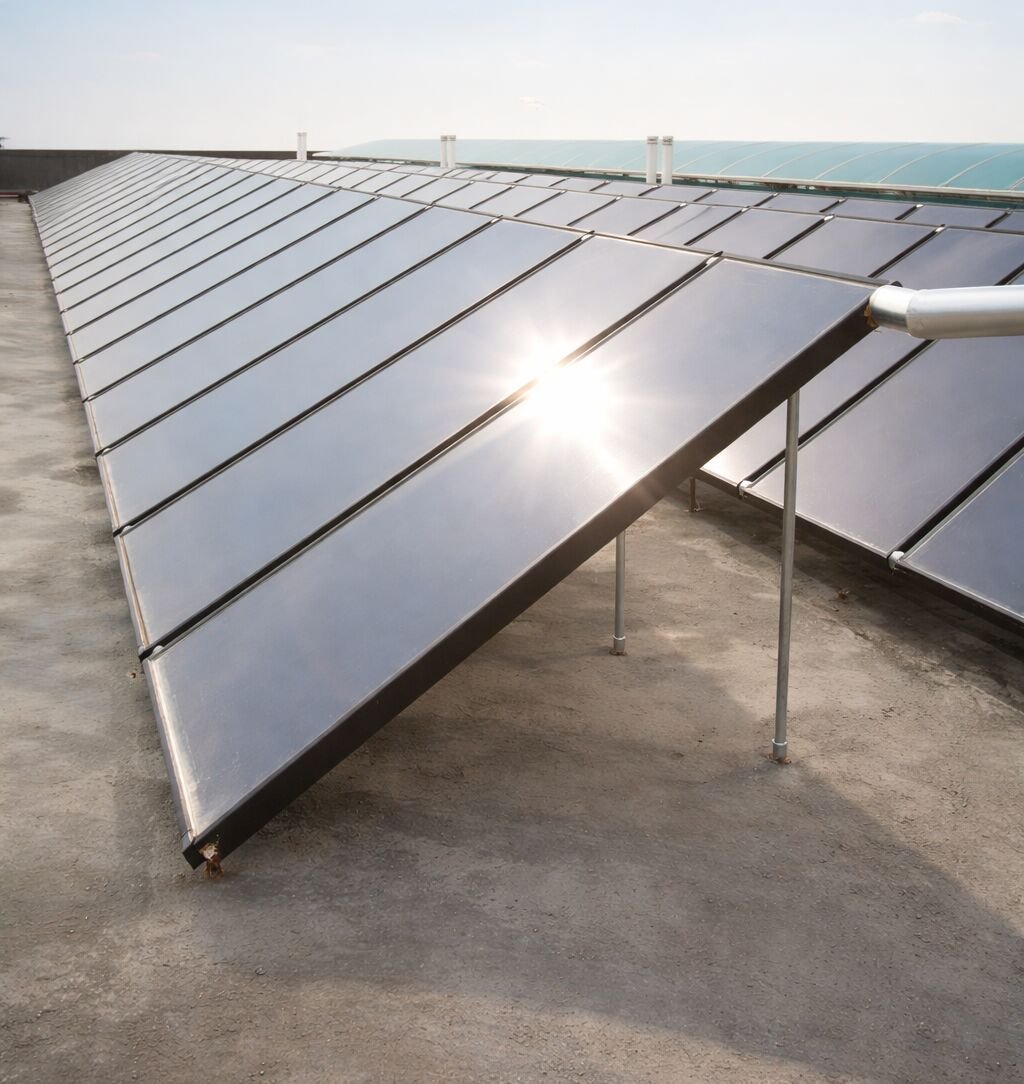

Solar Air Heater

INTRODUCTION

The GGES Solar Air Heating System is designed to generate hot air using solar energy through Flat Plate Collectors similar to Solar Water Heater panels, designed and manufactured specifically for air heating applications. The system integrates collectors, blower, ducting, and process control to deliver consistent and efficient industrial hot air.

SYSTEM OVERVIEW

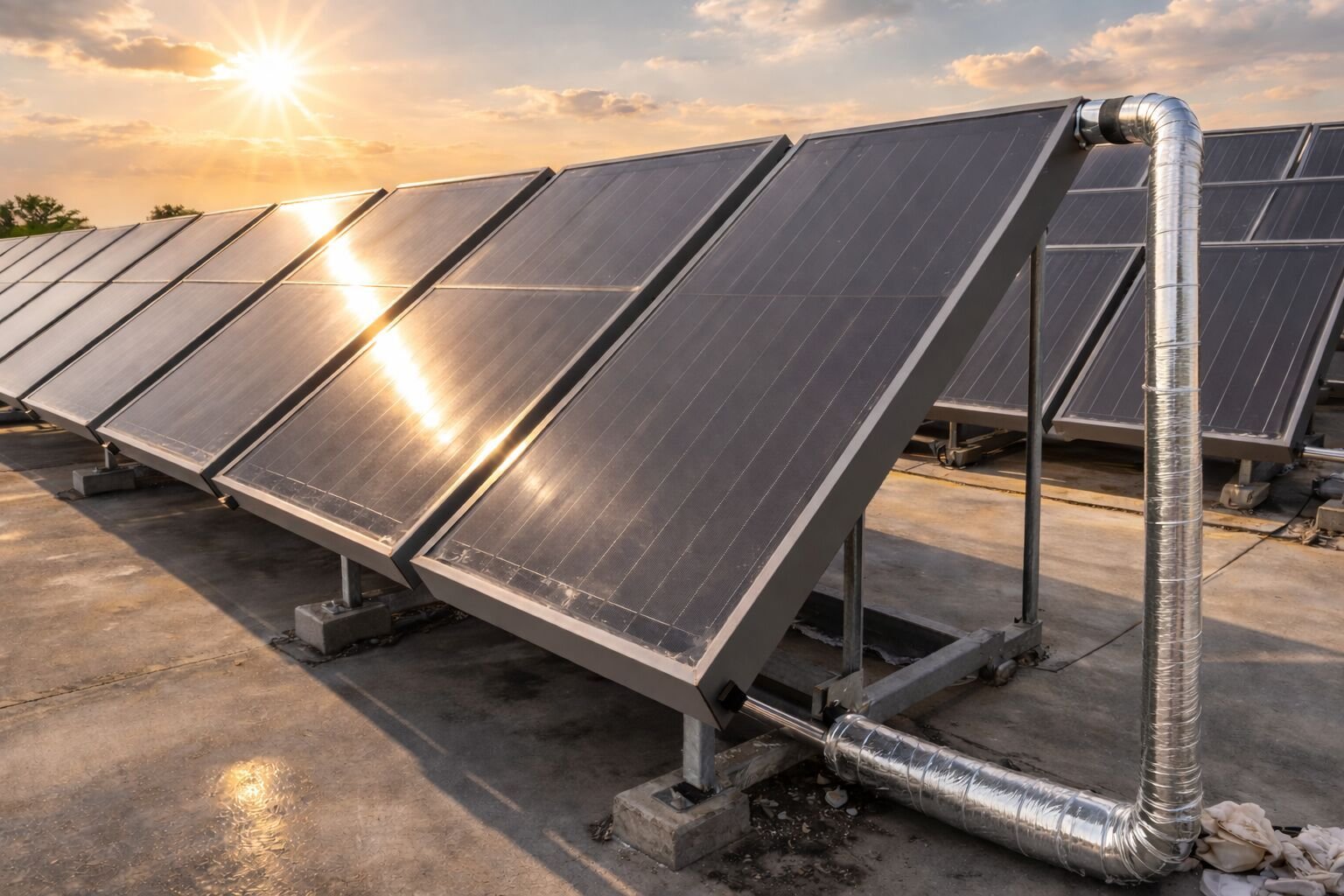

The system uses specially designed Flat Plate Solar Air Collectors where ambient air flows through specially designed channels with high-absorptivity coated absorber. Solar radiation heats the absorber surface, transferring thermal energy directly to flowing air.

A centrifugal blower forces ambient air through the collector array. The heated air is then delivered via insulated ducting to the industrial process, drying chamber, space heating system, or pre-heating application.

MAJOR COMPONENTS

·         Flat Plate Solar Air Collectors with transparent cover and insulated casing

·         High efficiency absorber plate with air flow channels

·         Centrifugal blower / fan with optional VFD control

·         GI/MS insulated ducting with dampers

·         Temperature/Pressure sensors and control panel

·         Hybrid backup integration (Electric / Steam / Furnace) if required

HOW DOES IT WORK?

1.       Ambient air is drawn into the system through the air intake section.

2.       The blower pushes air through Flat Plate Solar Air Collectors.

3.       Solar energy heats the absorber plate.

4.       Heat is transferred to the flowing air inside the collector channels.

5.       Hot air is collected in the outlet header duct.

6.       Heated air is supplied directly to the industrial process.

7.       During low solar radiation, hybrid backup ensures uninterrupted operation.

TECHNICAL SPECIFICATIONS (TYPICAL RANGE)

·         Air Temperature Rise: 20°C – 60°C (depending on solar radiation)

·         Outlet Air Temperature: Up to 80°C – 90°C (design dependent)

·         Collector Efficiency: 70-80%

·         Air Flow Capacity: 100 kg/hr onwards

·         Collector Type: Flat Plate Air Heating Collector

·         Operation Mode: Standalone or Hybrid

·         System Life: 15+ Years designed life

SUITABLE APPLICATIONS

·         Industrial Tray Dryers

·         Tunnel Dryers and Conveyor Drying Systems

·         Solar Cabinet Dryers

·         Agro and Food Processing Units

·         Textile and Garment Processing

·         Chemical and Pharmaceutical Drying

·         Sludge and Biomass Drying

·         Warehouse and Industrial Shed Heating

·         Boiler Combustion Air Pre-heating

KEY ADVANTAGES

·         Significant reduction in conventional fuel consumption

·         No water – No Freezing – No Leakage

·         Zero fuel cost during sunshine hours

·         Low operating and maintenance cost

·         Simple design with long service life

·         Scalable and modular installation

·         Supports sustainability and ESG targets

·         Reduces carbon emissions

WHY GGES INDIA?

·         Expertise in solar thermal steam systems

·         Customized engineering based on process airflow and temperature requirement

·         Low maintenance and simple operation

·         Scalable and modular system design

·         Seamless integration with existing process

·         Complete EPC services – design, supply, installation, and commissioning

·         Operator training and ongoing technical support

·         Strong after-sales service and customer support

·         Made-in-India solutions with global quality standards
